HDS 182
182 WR 33 102 SD AL LS 8 ohm    -    Order ID: 850439

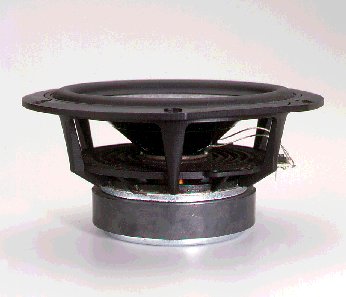

A high End mid-woofer with rigid aerodynamic cast aluminium basket profile and ventilated spider. The cast basket provides the necessary sturdy base for the magnet structure and suspension and allows for long excursion of the cone. The spider is ventilated to achieve the lowest possible compression and to allow air to flow freely to create a cooling effect for the voice coil. The design of the basket front allows for very slim box designs and the edges are chamfered to re-duce the necessary amount of counter sinking. The three or five layer sandwich cone improves accuracy and consistency of sound reproduction over the entire frequency range, creating a more "musical" driver.









HDS 182















Thiele Small parameters:





Free air

Common

Baffled





Nominal impedance

Zn

(ohm)



8







Minimum impedance/at freq.

Zmin

(ohm/Hz)



7.1/282







Maximum impedance

Zo

(ohm)



40.2







DC resistance

Re

(ohm)



6.2







Voice coil inductance

Le

(mH)



1.3







Capacitor in series with 8 ohm
(for impedance compensation)

Cc

(F)



9







Resonance Frequency

fs

(Hz)

44.9



43.6





Mechanical Q factor

Qms



2.28



2.35





Electrical Q factor

Qes



0.42



0.43





Total Q factor

Qts



0.35



0.36





F (Ratio fs/Qts)

F

(Hz)





120





Mechanical resistance

Rms

(Kg/s)



2.34







Moving mass

Mms

(g)

18.9



20.1





Suspension compliance

Cms

(mm/N)



0.66







Effective cone diameter

D

(cm)



13.5







Effective piston area

Sd

(cm)



143







Equivalent volume

VAS

(ltrs)



18.7







Force factor

Bl

(N/A)



8.9







Reference voltage sensitivity
Re 2.83V 1m at 282 Hz (Measured)



(dB)





87.6







Magnet and voice coil parameters:















Voice coil diameter

d

(mm)

33









Voice coil length

h

(mm)

17









Voice coil layers

n



2









Flux density in gap

B

(T)

1.22









Total useful flux



(mWb)

1.06









Height of the gap

hg

(mm)

6









Diameter of magnet

dm

(mm)

102









Height of magnet

hm

(mm)

20









Weight of magnet



(kg)

0.68











Power handling:













Long term Max System Power (IEC)

(W)

150
