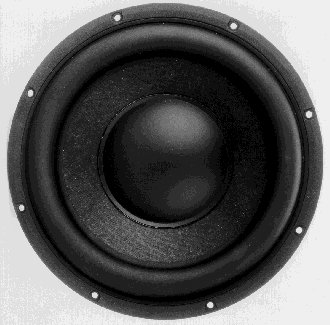

The passive radiator version of the 10" XLS family of drivers. The passive radiator is available in three different standard moving masses. To enable the designer to fine-tune the moving mass an M5 threaded hole has been added on the mass block. This way extra mass can be added in an easy and simple way.The moving components and the frame are the same as the 10" active driver providing the solid base for a high performance passive radiator.

























Thiele Small parameters:















Resonance Frequency

fs

(Hz)

11.2









Mechanical Q factor

Qms



14









Equivalent volume

VAS

(ltrs)

80









Mechanical resistance

Rms

(Kg/s)

2









Moving mass

Mms

(g)

400









Suspension compliance

Cms

(mm/N)

0.508









Effective piston area

Sd

(cm²)

333









Xmax Peak



mm

22
