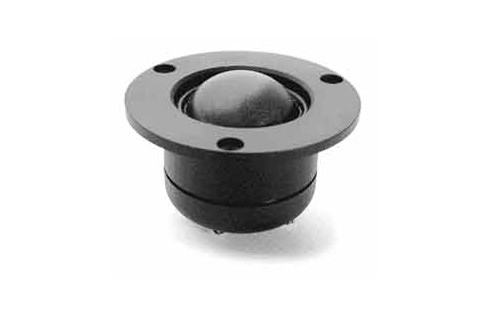

D2904/6000-01

Characteristic sensitivity (2.83V / 1m) : 90.5 dB
Recommended frequency range : 2.5 - 20 kHz
Free air resonance frequency, fs : 750 Hz
DC resistance, Re : 3.5 ohm
Voice coil inductance, Le : 0.02 mH
Effective piston area, Sd : 8.0 cm²
Moving mass incl. air, md : 0.40 g
Force factor, BL : 2.7 Tm
Excursion, lin./max. : ±0.25 / ±1.3 mm
Voice coil diameter : 28 mm
Rated power handling : 150 W (12 dB/oct.
cross-over at 2.7 kHz)
Net weight : 0.13 kg
